3. FOLLOW THE STEPS MENTIONED FOR SLAVE2 ALSO FOR SLAVE1 (Host OS IP: 192.168.1.3)
4. Configuring Key Based Login
Setup SSH in every node such that they can communicate with one another without any prompt for password.
Check this link for: Steps of Doing SSH Setup
5. Setting up ".bashrc" on each system (master, slave1, slave2)
$ sudo gedit ~/.bashrc
Add the below lines at the end of the file.
export HADOOP_HOME=/usr/local/hadoop
export PATH=$PATH:$JAVA_HOME/bin:$HADOOP_HOME/bin:$HADOOP_HOME/sbin
export HADOOP_CONF_DIR=/usr/local/hadoop/etc/hadoop
export HADOOP_MAPRED_HOME=/usr/local/hadoop
export HADOOP_COMMON_HOME=/usr/local/hadoop
export HADOOP_HDFS_HOME=/usr/local/hadoop
export YARN_HOME=/usr/local/hadoop
6. Follow all the nine steps from the article below to setup Hadoop on "master" machine
Update your $HADOOP_HOME/etc/hadoop/core-site.xml file to set the NameNode location to master on port 9000:
$HADOOP_HOME: /usr/local/hadoop
Code:
<configuration>
<property>
<name>fs.default.name</name>
<value>hdfs://master:9000</value>
</property>
</configuration>
8. Set path for HDFS
Edit $HADOOP_HOME/etc/hadoop/hdfs-site.xml file to resemble the following configuration.
<configuration>
<property>
<name>dfs.namenode.name.dir</name>
<value>/home/hadoop/data/nameNode</value>
</property>
<property>
<name>dfs.datanode.data.dir</name>
<value>/home/hadoop/data/dataNode</value>
</property>
<property>
<name>dfs.replication</name>
<value>1</value>
</property>
</configuration>
9. Set YARN as Job Scheduler
Edit the mapred-site.xml file, setting YARN as the default framework for MapReduce operations
$HADOOP_HOME/etc/hadoop/mapred-site.xml
<configuration>
<property>
<name>mapreduce.framework.name</name>
<value>yarn</value>
</property>
<property>
<name>yarn.app.mapreduce.am.env</name>
<value>HADOOP_MAPRED_HOME=$HADOOP_HOME</value>
</property>
<property>
<name>mapreduce.map.env</name>
<value>HADOOP_MAPRED_HOME=$HADOOP_HOME</value>
</property>
<property>
<name>mapreduce.reduce.env</name>
<value>HADOOP_MAPRED_HOME=$HADOOP_HOME</value>
</property>
</configuration>
10. Configure YARN
Edit yarn-site.xml, which contains the configuration options for YARN. In the value field for the
yarn.resourcemanager.hostname, replace 192.168.1.12 with the public IP address of "master":
$HADOOP_HOME/etc/hadoop/yarn-site.xml
<configuration>
<property>
<name>yarn.acl.enable</name>
<value>0</value>
</property>
<property>
<name>yarn.resourcemanager.hostname</name>
<value>192.168.1.12</value>
</property>
<property>
<name>yarn.nodemanager.aux-services</name>
<value>mapreduce_shuffle</value>
</property>
</configuration>
11. Configure Workers
The file workers is used by startup scripts to start required daemons on all nodes.
Edit this file: $HADOOP_HOME/etc/hadoop/workers to include both of the nodes:
slave1
slave2
12. Configure Memory Allocation (Two steps)
A) Edit $HADOOP_HOME/etc/hadoop/yarn-site.xml and add the following lines:
$ sudo gedit $HADOOP_HOME/etc/hadoop/yarn-site.xml
<property>
<name>yarn.nodemanager.resource.memory-mb</name>
<value>1536</value>
</property>
<property>
<name>yarn.scheduler.maximum-allocation-mb</name>
<value>1536</value>
</property>
<property>
<name>yarn.scheduler.minimum-allocation-mb</name>
<value>128</value>
</property>
<property>
<name>yarn.nodemanager.vmem-check-enabled</name>
<value>false</value>
</property>
B) Edit $HADOOP_HOME/etc/hadoop/mapred-site.xml and add the following lines
$ sudo gedit $HADOOP_HOME/etc/hadoop/mapred-site.xml
<property>
<name>yarn.app.mapreduce.am.resource.mb</name>
<value>512</value>
</property>
<property>
<name>mapreduce.map.memory.mb</name>
<value>256</value>
</property>
<property>
<name>mapreduce.reduce.memory.mb</name>
<value>256</value>
</property>
13. Duplicate Config Files on Each Node
Copy the Hadoop configuration files to the worker nodes:
$ scp -r /usr/local/hadoop/etc/* ashish@slave1:/usr/local/hadoop/etc/
$ scp -r /usr/local/hadoop/etc/* ashish@slave2:/usr/local/hadoop/etc/
When you are copying contents of "/etc", the following file should be modified to contain the correct JAVA_HOME for each of the destination nodes.
/usr/local/hadoop/etc/hadoop/hadoop-env.sh
14. Format HDFS
HDFS needs to be formatted like any classical file system. On "master", run the following command:
$ hdfs namenode -format
Your Hadoop installation is now configured and ready to run.
15. ==> Start and Stop HDFS
Start the HDFS by running the following script from master:
/usr/local/hadoop/sbin/start-dfs.sh
This will start NameNode and SecondaryNameNode on master, and DataNode on slave1 and slave2, according to the
configuration in the workers config file.
Check that every process is running with the jps command on each node. On master, you should see the following (the
PID number will be different):
21922 Jps
21603 NameNode
21787 SecondaryNameNode
And on slave1 and slave2 you should see the following:
19728 DataNode
19819 Jps
To stop HDFS on master and worker nodes, run the following command from node-master:
stop-dfs.sh
16. ==> Monitor your HDFS Cluster
Point your browser to http://master:9870/dfshealth.html, where "master" IP is the IP address of your master, and
you’ll get a user-friendly monitoring console.
Elephas is an extension of Keras, which allows you to run distributed deep learning models at scale with Spark. Elephas currently supports a number of applications, including:
% Data-parallel training of deep learning models
% Distributed hyper-parameter optimization
% Distributed training of ensemble models
Schematically, elephas works as follows.
We have listed packages that are required outside of Anaconda distribution.
The following code goes in a Shell (.sh) script for Ubuntu or .bat script Windows:
pip install Keras_Applications-1.0.8.tar.gz
pip install keras-team-keras-preprocessing-1.1.0-0-gff90696.tar.gz
pip install Keras-2.3.1.tar.gz
pip install hyperopt-0.2.4-py2.py3-none-any.whl
pip install hyperas-0.4.1-py3-none-any.whl
pip install tensorflow_estimator-2.1.0-py2.py3-none-any.whl
pip install grpcio-1.28.1-cp37-cp37m-manylinux2010_x86_64.whl
pip install protobuf-3.11.3-cp37-cp37m-manylinux1_x86_64.whl
pip install gast-0.3.3.tar.gz
pip install opt_einsum-3.2.1.tar.gz
pip install astor-0.8.1.tar.gz
pip install absl-py-0.9.0.tar.gz
pip install cachetools-4.1.0.tar.gz
pip install pyasn1-0.4.8.tar.gz
pip install pyasn1-modules-0.2.8.tar.gz
pip install rsa-4.0.tar.gz
pip install google-auth-1.14.1.tar.gz
pip install oauthlib-3.1.0.tar.gz
pip install requests-oauthlib-1.3.0.tar.gz
pip install google-auth-oauthlib-0.4.1.tar.gz
pip install Markdown-3.2.1.tar.gz
pip install tensorboard-2.1.1-py3-none-any.whl
pip install google-pasta-0.2.0.tar.gz
pip install gast-0.2.2.tar.gz
pip install termcolor-1.1.0.tar.gz
pip install tensorflow-2.1.0-cp37-cp37m-manylinux2010_x86_64.whl
pip install pypandoc-1.5.tar.gz
pip install py4j-0.10.7.zip
pip install pyspark-2.4.5.tar.gz
pip install elephas-0.4.3-py3-none-any.whl
Generated .whl files are stored in directory (here 'ashish' is my username): /home/ashish/.cache/pip/wheels
Few packages were not accepted for latest release labels:
# tensorflow-estimator [2.2.0, >=2.1.0rc0] (from tensorflow==2.1.0). Latest available is: 2.2.0
# pip install gast-0.3.3.tar.gz
# pip install py4j-0.10.9.tar.gz
Most of these packages are required by TensorFlow, except:
1. hyperopt-0.2.4-py2.py3-none-any.whl
2. hyperas-0.4.1-py3-none-any.whl
3. pypandoc-1.5.tar.gz
4. py4j-0.10.7.zip
5. pyspark-2.4.5.tar.gz
All the packages are present in this Google Drive link, except TensorFlow and PySpark due to their sizes.
PySpark size: 207 MB
TensorFlow size: 402 MB
Running the shell script second time, uninstalls and reinstalls the packages again.
Here is a Python script to avoid doing this and install only if packages are not installed already:
import sys
import subprocess
import pkg_resources
required = { 'pyspark', 'scipy', 'tensorflow' }
installed = { pkg.key for pkg in pkg_resources.working_set }
missing = required - installed
if missing:
python = sys.executable
subprocess.check_call([python, '-m', 'pip', 'install', *missing], stdout=subprocess.DEVNULL)
References:
1. Elephas Documentation
2. GitHub Repository
1. Business & Business Intelligence
2. Intelligent Decision Making
3. Factors affecting BI capability
4. Data Analytics
5. Importance of Data Analytics
6. Big Data
7. Advantages of Big Data Analytics
8. Challenges in BDA
9. Big Data Analytics Model
10. BDA Implementation
11. Real world BI Examples
Business
Dealing in any activity to earn profit. For example: Selling or Buying of goods and services (products)
Business Intelligence
A set of theories, methodologies, architectures and technologies that transform raw data into meaningful and useful information for business purposes.
BI helps in identifying, develop & create new business strategies and effective decision making through historical, operational and predictive views of business operations.
Intelligent Decision Making
Real time / On time availability of High Quality Information for decision making process regarding a scenario, situation or problem under consideration
Factors affecting BI capability
Amount, Type, Efficiency and Output format of the analyzed data to be used by decision makers.
Data Analytics
The process of reviewing existing data with multiple angles / dimensions with the intention of finding new additional information based on retrieved co-relations / hidden patterns
Importance of Data Analytics
Organizations uses data for the optimized utilization of all available resources in order to achieve predefined goals ( Decision making )
Nowadays, organizations are more reliant on data to drive business decision to foster innovation & development
As per IBM, a very large amount of data being created on daily basis: (In Terra / Zetta Bytes)
Big Data
Very large in size ( In TB / ZB ), Structured to Unstructured, and Generates very fastly on continuous basis from multiple locations.
( Dimensions : Volume, Variety & Velocity )
For example : Sensor data (Climate data), CCTV Data, Log Files, Posts on S-N sites, Online Shopping sites data, Call Records, Airlines Data, Hospitality Data, Wikipedia Text and Images
Advantages of Big Data Analytics
1. Higher Customer Satisfaction
2. Improved Business Processes
3. Increased Revenue
4. Reducing Operating Cost and Time
5. Gaining Competitive Advantages of Business
6. Customized Products ( On Individual customer basis )
Challenges in BDA
Capturing, Storing, Searching, Classification , Clustering, Analyzing and Visualization of data
Requirement of running S/w applications on number of nodes in parallel to process a very huge amount of data
Big Data Analytics Model: Map Reduce Programming Model
A distributed programming model that support parallel processing of data on number of nodes
Components of Map Reduce :
1. Input Reader
2. Output Writer
3. Map and Reduce Function
4. Partitioning Function
5. Comparison Function
BDA Implementation
Apache Hadoop Framework ( 100 % Open Source ): An Implementation of Map Reduce Programming Model
# A Java based framework to process data in parallel on a distributed computing environment ( Cloud Computing )
# Provides new way of storing and analyzing a huge amount of data ( In TB / ZB )
# Cost Effective solution
Hadoop Components
# Map Reduce Framework
# Hive ( Data Analytics & SQL Development )
# Cluster ( Data Loading : Sqoop and Flume )
# Zookeeper ( Hadoop Services Management )
# Ozzie ( Nodes Management )
# HBase ( NoSql - Database )
# Distributed File System (HDFS)
Power Of Hadoop
# Distributed File System
# Fast data transfer rate in between various nodes
# Easier and Quick Recovery from any failure with minimal interruption of services
Design Consideration
# Emerging M2M Communication based market
# Locations, Devices and Network associated with data
# Processing of Complex and Unstructured data
# Gaining Competitive Advantages of Business
Real world BI Examples
Business Intelligence has infinite potential uses in organization. BI solutions are used by almost all kind of organizations or companies to drive business decisions. For example :
Telecom Domain
To decide either to invest their resources into securing new customers or engage existing ones and turn them into repeat buyers ( Customer behaviors analysis )
Retail Domain
To create better shopping experience for customers and making business profitable ( By putting trends together to stock popular items before they became in high demand and afterward inventory will not stuck with excess )
Market Research
To engage relevant customers, illuminate customer trends and uncover their needs & personal preferences ( Historical data analysis )
Hospital Quality and Efficiency of Care
To achieve the goal of having every patient seen by a doctor within 45 minutes of arrival or to improve efficiency of care ( Patients Arrival, Doctors Availability, Turnaround & Bed availability metrics analysis )
Sales Forecasting
Historical, Operational and Predictive analysis using Sales data

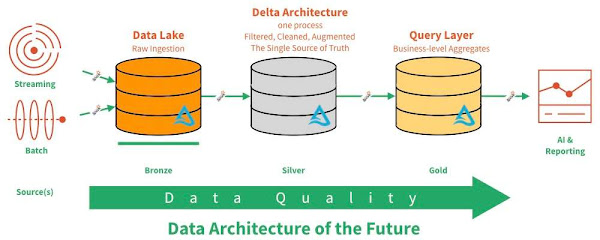

Explore the fundamental concepts behind Delta Lake.
Delta Lake is a robust storage solution designed specifically to work with Apache Spark. Organizations use Delta Lake to build a modern cloud data platform for supporting decision making. In this course, we explore the fundamental concepts behind Delta Lake.
Learning objectives
- Explain what Delta Lake is.
- Summarize how Delta Lake helps organizations solve common challenges related to enterprise-scale data analytics.
Prerequisites
- Beginning knowledge of data processing concepts
- Beginning knowledge of Apache Spark
--- --- ---
In this course, we explore the fundamental concepts behind Delta Lake. Delta Lake is a robust storage solution designed specifically to work with Apache Spark. Organizations use Delta Lake to build a modern cloud data platform for supporting decision making.
Course goals
By the end of this course, you will be able to describe what Delta Lake is and explain how Delta Lake helps organizations solve common challenges related to enterprise-scale data analytics.
Who should take this course?
Executives (CEO, CTO, CIO), directors of data engineering, platform architects, data engineers, data scientists, Spark programmers, data analysts, business intelligence analysts.
Prerequisite knowledge required
Familiarity with data processing concepts, familiarity with Apache Spark
--- --- ---
Lesson 1: A New Data Management Paradigm
Over the past few years at Databricks, we’ve seen a new data management paradigm that emerged independently across many customers and use cases: the cloud data platform.
The evolution of data management
Data Warehouses
Data warehouses have a long history in decision support and business intelligence applications.
Since its inception in the late 1980s, data warehouse technology continued to evolve. Massively parallel processing (MPP) architectures led to systems able to handle larger data sizes.
While warehouses excel in handling structured data, most enterprises have to deal with unstructured, semi-structured, and data with high variety, velocity, and volume. Data warehouses are not suited for many of these use cases, and they are certainly not the most cost-efficient.
Data Lakes
As companies began to collect large amounts of data from many different sources, architects began envisioning a single system to house data for many different analytic products and workloads.
About a decade ago companies began building data lakes – repositories for raw data in a variety of formats.
While suitable for storing data, data lakes lack some critical features. Data lakes do not support ACID transactions, do not enforce data quality, and their lack of consistency/isolation makes it almost impossible to mix appends and reads, and batch and stream jobs.
Diverse Data Applications
Companies require systems for diverse data applications including:
- SQL analytics
- real-time monitoring
- data science
- machine learning and artificial intelligence
Most of the recent advances in the modern data landscape have been building better models to process unstructured data (text, images, video, audio). These are precisely the types of data for which a data warehouse is sub-optimal.
A Multitude of Systems
A common approach to building these systems for diverse data applications is to use multiple systems:
- a data lake
- several data warehouses
- streaming systems
- time-series, graph, and image databases
Having a multitude of systems introduces complexity, and more importantly, introduces delay as data professionals invariably need to move or copy data between different systems.
What is a cloud data platform?
Recent innovations in data system design make the cloud data platform design pattern possible. This design is to implement data warehouse data structures and data management features directly on the kind of low-cost storage used for data lakes.
A data lakehouse is what you would get if you redesigned data warehouses in the modern world, now that cheap and highly reliable storage (in the form of object stores) are available.
A data lakehouse has the following key features:
- storage is decoupled from compute
- open storage formats, tools, and processing engines
- support for diverse data types ranging from unstructured to structured data
- support for diverse workloads, including SQL and analytics, data science, and machine learning
- transaction support
- end-to-end streaming
Lesson 2: Delta Lake and Apache Spark
What is Delta Lake?
Delta Lake is a technology for building robust data lakes and is a component of building your cloud data platform.
Delta Lake is a storage solution specifically designed to work with Apache Spark and is read from and written to using Apache Spark.
A data lake built using Delta Lake is ACID compliant, meaning that the data stored inside of the data lake has guaranteed consistency.
Due to this guaranteed data consistency, Delta Lake is considered to be a robust data store, whereas a traditional data lake is not.
Elements of Delta Lake
Delta Lake is comprised of the following elements:
Delta Table:
A Delta table is a collection of data kept using the Delta Lake technology and consists of three things:
1. the Delta files containing the data and kept in object storage
2. a Delta table registered in the Metastore
3. the Delta Transaction Log kept with the Delta files in object storage
Delta Files: Delta Lake, by design, uses Parquet files (sometimes referred to as Delta files) to store an organization’s data in their object storage.
Parquet files are a state-of-the-art file format for keeping tabular data. They are faster and considered more powerful than traditional methods for storing tabular data because they store data using columns as opposed to rows.
Delta files leverage all of the technical capabilities of working with Parquet files but also track data versioning and metadata, and store transaction logs to keep track of all commits made to a table or object storage directory to provide ACID transactions.
ACID Properties of a Database
Atomicity:
Transactions are often composed of multiple statements. Atomicity guarantees that each transaction is treated as a single "unit", which either succeeds completely, or fails completely: if any of the statements constituting a transaction fails to complete, the entire transaction fails and the database is left unchanged. An atomic system must guarantee atomicity in each and every situation, including power failures, errors and crashes. A guarantee of atomicity prevents updates to the database occurring only partially, which can cause greater problems than rejecting the whole series outright. As a consequence, the transaction cannot be observed to be in progress by another database client. At one moment in time, it has not yet happened, and at the next it has already occurred in whole (or nothing happened if the transaction was cancelled in progress).
An example of an atomic transaction is a monetary transfer from bank account A to account B. It consists of two operations, withdrawing the money from account A and saving it to account B. Performing these operations in an atomic transaction ensures that the database remains in a consistent state, that is, money is neither debited nor credited if either of those two operations fail.
Consistency:
Consistency ensures that a transaction can only bring the database from one valid state to another, maintaining database invariants: any data written to the database must be valid according to all defined rules, including constraints, cascades, triggers, and any combination thereof. This prevents database corruption by an illegal transaction, but does not guarantee that a transaction is correct. Referential integrity guarantees the primary key – foreign key relationship.
Isolation:
Transactions are often executed concurrently (e.g., multiple transactions reading and writing to a table at the same time). Isolation ensures that concurrent execution of transactions leaves the database in the same state that would have been obtained if the transactions were executed sequentially. Isolation is the main goal of concurrency control; depending on the method used, the effects of an incomplete transaction might not even be visible to other transactions.
Durability:
Durability guarantees that once a transaction has been committed, it will remain committed even in the case of a system failure (e.g., power outage or crash). This usually means that completed transactions (or their effects) are recorded in non-volatile memory.
~ ~ ~
Delta optimization engine: Because Delta Lake is specifically designed to be used with Apache Spark, reads and writes made to Delta tables benefit from the inherent massively parallel processing capabilities of Apache Spark.
When Apache Spark code is run to read and write to Delta Lake, the following optimizations are available:
- File management optimizations including compaction, data skipping, and localized data storage
- Auto optimized writes and file compaction
- Performance optimization via Delta caching
Delta Lake storage layer
Building with Delta Lake, we store data using Delta Lake and then access the data via Apache Spark. With this pattern, organizations have a highly performant persistent storage layer built on low-cost, easily scalable object storage (Azure Data Lake Storage/ADLS, Amazon Web Services Simple Storage Service/S3).
Keeping all of your data in files in object storage is the central design pattern that defines a data lake.
Using the Delta Lake storage layer design pattern ensures consistency of data and allows the flexibility of working with a data lake.
Delta architecture design pattern
The Delta architecture design pattern consists of landing data in successively cleaner Delta Lake tables from raw (Bronze) to clean (Silver) to aggregate (Gold), as shown in the graphic below.
Key Concepts: Delta Tables
As discussed above, Delta tables consist of three things:
1. The Delta files containing the data and kept in object storage
2. A Delta table registered in the Metastore ( docs.databricks.com/metastores )
3. The Delta Transaction Log kept with the Delta files in object storage ( Diving into delta lake unpacking the transaction log )
Delta files are kept in object storage.
Note that this object storage is in the Customer's cloud rather than Databricks's cloud.
Delta Transaction Log
The Delta Lake transaction log (also known as the DeltaLog) is an ordered record of every transaction that has ever been performed on a Delta Lake table since its inception.
It is written to object storage in the same location as the Delta files.
A Delta table is registered in the Metastore associated with a Databricks Workspace.
Metastore references include the location of Delta files in Object Storage, in addition to the schema and properties of the table.
Spark SQL Queries
End users write Spark SQL queries against the table registered in the Metastore.
In other words, end users write simple queries against a Delta Table as if they were interacting with a standard SQL database.
Key Concepts: Delta Lake Storage Layer
As discussed above, the Delta Lake storage layer consists of two parts:
1. The Delta files containing the data, kept in object storage
2. a Delta table registered in the Metastore
Key Concepts: Delta Architecture
Throughout our Delta Lake discussions, we'll often refer to the concept of Bronze/Silver/Gold tables. These levels refer to the state of data refinement as data flows through a processing pipeline.
These levels are conceptual guidelines, and implemented architectures may have any number of layers with various levels of enrichment. Below are some general ideas about the state of data in each level.
Bronze Tables
- Raw data (or very little processing)
- Data will be stored in the Delta format (can encode raw bytes as a column)
Silver Tables
- Data that is directly queryable and ready for insights
- Bad records have been handled, types have been enforced
Gold Tables
- Highly refined views of the data
- Aggregate tables for BI
- Feature tables for data scientists
- For different workflows, things like schema enforcement and deduplication may happen in different places.
The Power of Delta Lake
The true power of Delta Lake emerges when it is combined with Apache Spark. Benefits of combining Delta Lake with Apache Spark include:
COMPUTE / STORAGE SEPARATION:
Separation of compute and storage
A powerful paradigm in modern data storage and processing is the separation of compute and storage.
Building systems with decoupled compute and storage has benefits associated with scalability, availability, and cost.
In this system, Apache Spark loads and performs computation on the data. It does not handle permanent storage. Apache Spark works with Delta Lake, the first storage solution specifically designed to do so.
RELIABLE DATA LAKE
Highly performant and reliable lakehouse
A data infrastructure built using Apache Spark and Delta Lake allows the construction of a highly performant and reliable data lake.
The ACID properties of Delta Lake and the optimizations of the Delta read and write engine make Delta Lake built on cloud-based object storage the best-in-class solution.
STRUCTURED STREAMING SUPPORT
Support for Structured Streaming
Delta Lake has native support for Structured Streaming via Apache Spark, allowing it to handle both batched and stream data sources. Data written to Delta Lake is immediately available for query.
Support for immediate access to batch and stream data sources means that the Delta architecture design pattern replaces the complex Lambda architecture pattern.
Building a data lake with Delta Lake at its core means that neither table repairs nor a complex lambda architecture are necessary.
Lesson 3
A Single Source of Truth for Business
Delta Lake as your single source of truth
If using Delta Lake to build your data infrastructure, it is possible to make your data lake your single source of truth (SSOT) to support business decision making.
In this lesson, we will review what a SSOT is, and how Delta Lake can act as your SSOT.
What is a single source of truth?
An SSOT is the single source of data that is used by everyone in an organization when mining data to make business decisions. This concept is important across organizations to ensure that business decisions are being made using the most accurate and up to date datasets. Without an SSOT, organizations can end up with multiple, conflicting copies of data, making it difficult to determine its validity and correctness.
This SSOT is the heart of an organization's enterprise decision support system (EDSS).
The Enterprise Decision Support System
An enterprise decision support system, or EDSS, is an information system used by an organization to help decision-making.
An EDSS might be built:
- on-premises or in the cloud
- leveraging data lake, data warehouse, or data lakehouse technology
The mission of an EDSS is to publish an organization’s data assets to data analysts and other downstream consumers. As you can imagine, an EDSS is most effective if there is an SSOT for data. Having an SSOT means that data being published all come from the same, singular credible source.
Analytical and Operational Layers
An important concept in data system design is the distinction between the EDSS and the Operational Data Store (ODS). The EDSS and the ODS in a typical enterprise data system perform two distinct functions:
- an EDSS performs Online Analytical Processing (OLAP)
- an ODS performs Online Transaction Processing (OLTP)
EDSS AND OLAP
An EDSS is like a movie of an organization over its history.
- An EDSS contains all available transactions performed during the history of a business, as well as all versions of information needed to perform those transactions.
- Data associated with every transaction is available in the database.
- If an order was modified, for example, all versions of that order are available in the database.
- The image below shows an EDSS situated in the analytical layer of a data infrastructure. Once an ETL process loads data into the EDSS, data can then be consumed downstream.
ODS AND OLTP:
An ODS is like a photograph of an organization at any given moment.
- An ODS contains data of all transactions (like sales or clicks) performed during business operations and all information needed to complete these transactions.
- But an ODS only contains the latest version of a particular data point.
- Data associated with every order received is available in the database.
- If an order is modified, only the modified order is available.
- The image below shows an ODS situated in the operational layer of a data infrastructure
COMPLETE DATA SYSTEM
In a complete data system, an ETL process pulls data from the ODS to be loaded into the EDSS.
Lesson 4: Levels of Data in an Architected Data System
Levels of Data
In this lesson, we will review the levels of data used to build an EDSS. This concept help in later lessons where we discuss EDSS Architectures and the Bronze, Silver, and Gold tables in the Delta Architecture.
Operational
- Operational data is stored in an ODS.
- This data is the day-to-day data that an organization collects.
- It is typically accessed frequently by the moment-to-moment operations of the organization e.g. via a website, mobile app, or even physical location.
- Operational data is formatted to meet the needs of these operations.
- The needs of analysts who may be looking at this data are secondary.
Atomic
- Atomic data is typically known as the storage layer. It is stored in an EDSS and is the single source of truth.
- This data contains all values of any data attribute over time.
- Atomic data is the most granular level of data.
- It is fully integrated across all tables and data stores.
- Atomic data is formatted according to a subject (customer, product, etc.), typically associated with the needs of a department and the analysts supporting that department.
Departmental
- Departmental data is a subset of atomic data and is typically stored in what is referred to as a data mart.
- It is designed to meet the specific needs of a team, department, or use case.
- Departmental data is kept in data marts, or smaller views of atomic data that are frequently updated downstream from the SSOT.
- In some contexts, departmental data is known as the query layer.
Individual
- Individual data is ad-hoc and temporary.
- It is often used to answer highly-specific questions such as how many customers bought a particular product over a specific time frame.
- This data is the most refined and is nearly all aggregate in nature.
- It is the type of data that could be generated by a SQL query or an interactive Apache Spark command run from a desktop tool or notebook.
Levels of Data: Examples
In the following section, you will see an example for each type of data that comes into an architectured data system.
Operational data - An individual’s credit score
Say for example that you are on a financial website and request your credit score. In order for the website to complete this request, the website’s ODS would be accessed to provide this information. A credit score is operational data because it provides a snapshot into an individual’s credit history.
Atomic data - An individual’s credit history
Now, say that the financial institution wishes to understand credit histories for all its customers. These credit histories are considered atomic data and are stored in an atomic database because they contains all transactions and records over time (they are time-variant).
Departmental data - Monthly customer report
Now, say, for example, that the finance team for a company wants a monthly report of new customers by month with a credit rating of A or higher. This is departmental data. It is a subset of all data. The finance team only wants to see customers with a credit rating of A or higher. The request meets a specific need.
Note: Since this is departmental data, this data would be housed in a data mart for rapid retrieval in decision-making by the finance team.
Individual data - One-time data query
Finally, let’s assume that a business analyst wants to know the number of customers living in California whose credit rating dropped from an A to a B in the last year. This information will be used by the company’s marketing department to prepare a targeted ad campaign.
The business analyst would run an individual query in this case, because the marketing department needs this information for the current ad campaign (they do not need this information in the future, meaning that the analyst does not need to store the result).
With what level would you associate each of these?
Considering the levels of data, think about each of the following. With which level of data would each be associated?
KAFKA:
Kafka is stream-processing software and is typically associated with the operational layer.
Kafka is often used to ensure that all operational transactions are properly ingested by the architected data system.
MySQL:
MySQL is an open-source database.
While it is incredibly flexible and could be deployed at many places in an architected data system, it is most commonly associated with the operational layer.
OBJECT STORAGE:
Object Storage like Azure Data Lake Storage (ADLS) or AWS Simple Storage Service (S3) can be employed in many ways in the architected data environment.
Using a Delta Architecture:
- the atomic layer would be a Silver Delta table built using Object Storage
- the departmental layer would be any number of Gold Delta tables also built on Object Storage
DATA WAREHOUSE:
A data warehouse (Teradata, Redshift, Snowflake) is most traditionally associated with the atomic layer.
Using the Delta Architecture, it is possible and even advisable to use a Silver Delta table as the atomic layer, using a data warehouse as a serving layer for departmental and individual access.
BUSINESS INTELLIGENCE GATHERING:
The act of gathering and preparing business intelligence is commonly associated with the individual level, in particular because of the ad hoc nature of this work.
BI and Data Analysts typically issue ad hoc queries against data stored at the departmental level.
Lesson 5: Enterprise Decision Support System Architectures
Bill Inmon's Theoretical Data Warehouse Architecture
Bill Inmon is considered by many to be the father of the data warehouse and the EDSS.
Inmon developed a theoretical architecture for the EDSS including all four layers, from operational to individual:
- An ETL process loads operational data into an EDSS (atomic data)
- Another process loads atomic data into data marts at the departmental level
- End users and other applications access departmental data at the individual level
Reviewing EDSS Architectures
In this lesson, we review the most common architecture patterns used for the modern EDSS.
Delta Lake is the next-generation implementation of Bill Inmon’s vision and iterates on his and others’ work in data warehousing.
INMON ARCHITECTURE
The Inmon Architecture is a general design pattern for Enterprise Decision Support Sytems (EDSS).
The on-premises data warehouse system
The on-premises data warehouse (ODW) system was the original design pattern used in building an EDSS.
CLOUD BASED
The cloud-based data warehouse system
Another approach to implementing an EDSS is the cloud-based data warehouse (CDW). This architecture often includes a low-cost raw layer as part of the ETL process.
The Cloud Data Platform
Another approach to implementing an EDSS is to designate a data lake built on cloud-based object storage as the single source of truth.
The on-premises data warehouse system
The on-premises data warehouse (ODW) system was the original design pattern used in building an EDSS.
Benefits of on-premises data warehouses
Highly-optimized
- ODWs typically involve highly optimized and tuned hardware and software.
- ODW system architecture tightly couples hardware and software.
- This coupling provides for best-in-class concurrent query performance.
Massively parallel processing systems
– ODWs typically leverage massively parallel processing (MPP) systems which allow for extremely fast ODW reads and writes.
- Well-established technology
– ODWs are also tried and true and are supported by decades of research and development, ensuring their reliability.
Challenges with on-premises data warehouses
Not cloud-native
– Since ODW's are not cloud-native, leveraging data for use anywhere other than within the ODW system requires potentially long-running queries or ETL processes.
Not elastic
– ODWs are not elastic. This means that resources cannot easily be scaled up or down to meet expanding or contracting workload demands.
In an ODW, scaling up often requires months of expensive planning and development by an engineering team.
Data duplication
– Performance benefits often require data replication/duplication, which goes against the principle of having a single source of truth.
High data gravity
– Data gravity refers to how difficult it is to move data from a given location.
Data kept in an ODW has high data gravity, meaning that it is difficult to move.
Data is kept in closed, proprietary formats on physical media.
If an organization is using an ODW managed by a vendor, their data is effectively locked in to that particular vendor.
Structured data only
– An ODW is, by nature, a structured data store, meaning that it can only ingest structured data.
- An ODW does not provide the flexibility to take a NoSQL approach to data processing.
- In recent years, a NoSQL (Not Only SQL) approach to data processing has been found to be reliable and valuable.
Expense
– An ODW is very expensive to build and maintain.
Expenses accrue in several areas:
- Initial hardware investment
- Teams of engineers required for both scaling systems and ongoing management
- Time lost due to required downtime for system upgrades
- Costs of having a dedicated database administrator (DBA) required to oversee an ODW
- ETL processes required for leveraging downstream applications like cloud-based analytics systems
The Cloud-based data warehouse system
Another approach to implementing an EDSS is the cloud-based data warehouse (CDW). This architecture often includes a low-cost raw layer as part of the ETL process.
Such an approach provides an optimized cloud-native system for reading data stored in the cloud.
Benefits of cloud-based data warehouses
Separation of compute and storage
– A CDW is typically built separating compute and storage.
Compare this to the inelastic ODW.
The separation of computation and storage makes it easier to allocate resources elastically.
Elastic resource allocation
– Cloud vendors allocate CDW resources elastically.
- Elastic resource allocation means that resources can dynamically be scaled up or down to meet expanding or contracting workload demands.
Optimized for query throughput
– By design, CDWs handle a large volume of concurrent queries, meaning that many users can simultaneously query the system.
- CDWs are very quick in reading data and returning results, excelling in low latency queries.
Cloud-based backup of historical Data
– Because data is stored in the data lake before being passed to the data warehouse, an historical record of the data exists in these raw initial files.
No database administrator required
– Typically, no database administrator is required to maintain a CDW because resource maintenance and allocation is handled by a cloud service provider.
Challenges with cloud-based data warehouses
Medium data gravity
– One significant problem for organizations using a CDW is that data must be stored in a proprietary format within the cloud object storage belonging to the CDW provider.
- Organizations are locked in and typically pay more per volume for this storage then they would pay storing the data in their cloud. CDW providers typically bill for storage at a premium.
Although data is in the cloud, moving the data requires expensive ETL jobs to successfully transfer it from the CDW provider's cloud object storage to an organization's cloud storage, where it can be used in another analytic application (like Tableau or Databricks).
Structured data only
– A CDW is by nature a structured data store. It can only ingest structured data.
- In recent years, a NoSQL (not only SQL) approach has been found to be reliable and valuable in terms of the flexibility it provides.
A CDW cannot do this.
Black-box processing of queries
– CDWs typically offer little opportunity for optimizing data queries, often lacking the ability to index data or provide transparency into the query execution plan.
Data Lake not queryable
– Because data in the data lake only exists as raw data, it is not queryable.
- In other words, the data housed in a CDW data lake would only be accessible by running an ETL process to load it into a data warehouse.
Expense: A CDW is expensive to build and maintain. Expenses accrue in several areas:
- ETL processes required for leveraging other cloud-based analytics systems
- Storage in vendor object-stores
The Cloud Data Platform
Another approach to implementing an EDSS is to designate a data lake built on cloud-based object storage as the SSOT.
This is unique from other data warehouse architectures, because the designated EDSS is the data lake, instead of a data warehouse.
In subsequent lessons, we will explore this architecture as implemented with Delta Lake and why it is the best option for building an EDSS.
Benefits of the Cloud Data Platform
Separation of compute and storage
– A data lake is foundationally built by separating compute and storage.
Compare this to the inelastic ODW.
The separation of computation and storage makes it easier to allocate resources elastically.
Infinite storage capacity
– With the unlimited availability of cloud-based object storage, organizations do not need to worry about running out of space.
Leverage best aspects of a data warehouse
– Using a data warehouse as a query layer means that all of the advantages of a data warehouse can be leveraged for reads:
- DBA-free resource allocation
- High query throughput and concurrent reads
Expense
– A cloud data platform is the least expensive option for building an SSOT. Organizations pay for compute only when needed.
Low data gravity
– The SSOT is data in the data lake.
- Cloud object stores can use any data format. Raw data can be kept in the format deemed best by the engineering team.
- This arrangement has the lowest data gravity, meaning it is easiest to move from here to any other location or format.
High data throughput
– High data throughput refers to this architecture's ability to handle a much higher volume of data per unit time.
- Apache Spark supports high data throughput by design.
- Since the cloud data platform leverages Apache Spark for moving data, this architecture also supports high data throughput.
No limitations on data structure
– Using a data lake as the SSOT means that there are no limits to the kinds of data that can be ingested.
- A data lake is a NoSQL system meaning that it can support structured as well as semi-structured and unstructured data.
- There are many advantages to a NoSQL approach. For one, it can significantly reduce the resources organizations must spend to clean up data.
Mix batch and stream workloads
– Building a system with Apache Spark means that the system benefits from the Structured Streaming capabilities of Apache Spark.
- This means that the system can work with both stream and batch data sources.
Challenges with the Cloud Data Platform
Not designed for high concurrency
– While this architecture is designed for high data throughput, it is not designed for high concurrency.
- A cloud data platform can be less efficient running many simultaneous queries.
Poor interactive query experience
– Issuing queries over a data lake can have a great deal of overhead for each query, as Apache Spark is designed for data throughput. In other words, Apache Spark handles large data loads well but can struggle to handle many concurrent queries.
Querying batch and stream data requires lambda architecture
– While Apache Spark makes it possible to query data in a Data Lake, a complex lambda architecture will be required to validate all of the data at read time to ensure that the most accurate state of data is queried.
- Using Delta Lake to build your cloud data platform means that a lambda architecture is not required.
Knowledge of the Spark environment required
– At a minimum, support from data engineers who can configure the Spark runtime for the system is needed.
Lesson 6: Building a Cloud Data Platform with Delta Lake
Fundamentals of Delta Lake
In the previous lesson we discussed some of the challenges inherent to the cloud data platform architecture. These challenges become most apparent when trying to build AI, analytic, or machine learning projects using data from an EDSS built with a cloud data platform architecture.
It is possible to minimize these challenges by using Delta Lake to build a cloud data platform. In this lesson we will review fundamental concepts inherent to Delta Lake. We will also explore how Delta Lake enables organizations to avoid known challenges with data lakehouses to build powerful, next generation EDSSs.
Common challenges faced when building a cloud data platform
When building a traditional cloud data platform (not using Delta Lake), organizations typically face challenges related to reliability, performance, and engineering.
Reliability challenges
Reliability challenges can present themselves as:
- Poor quality or corrupt data due to failed writes or schema mismatch issues
- Inconsistent views when trying to read streaming data sources
- Storage issues including data lock-in and storage idiosyncrasies inherent to different on-premises or cloud environments
Performance challenges at scale
Performance challenges can present themselves as:
- A bottleneck in processing as readers struggle to deal with too many small or few massive files in a directory. Streaming compounds this problem.
- A breakdown of the indexing of tables using partitioning. Partitioning breaks down if the wrong fields are picked for or when data has many dimensions or high cardinality columns.
- A lack of caching can lead to low cloud storage throughput (cloud object storage is 20-50MB/s/core vs 300MB/s/core for local SSDs).
Engineering challenges associated with Lambda architecture
A lambda architecture, originally developed to enable the merging of batch and stream data sources, can require up to six times as many engineers to maintain as a delta architecture, for the same data pipeline.
Delta Lake pillars
Next, we will introduce the fundamental concepts behind Delta Lake and explain why building a cloud data platform with Delta Lake enables organizations to bypass these challenges.
Delta Lake is built upon three pillars addressing reliability, performance, and engineering challenges:
1. Clean, quality data
2. Consistent views across batch and stream data workloads
3. Optimized and easy to adopt
Pillar 1: Clean, Quality Data
Delta Lake provides high quality and reliable data that is always ready for analytics through a range of features for ingesting, managing, and cleaning data.
This pillar speaks to reliability challenges when building a cloud data platform.
Under this pillar, Delta Lake has the following features:
1. "ACID transactions" ensure that only complete writes are committed.
2. "Schema enforcement" automatically handles schema variations to prevent insertion of bad records during ingestion.
3. "Time Travel", part of Delta Lake’s built-in data versioning, enables rollbacks, full historical audit trails, and reproducible machine learning experiments.
4. "Exactly once semantics" ensures that data are neither missed nor repeated erroneously.
Pillar 2: Consistent Views Across Batch and Stream Data Workloads
Delta Lake supports multiple simultaneous readers and writers for mixed batch and stream data.
This pillar speaks to performance challenges when building a cloud data platform.
Under this pillar, Delta Lake has the following features:
1. "Snapshot isolation" provides support for multiple simultaneous writers and readers.
2. "Mixed streaming and batch" data mean that a table in Delta Lake is a batch table as well as a streaming source and sink. Streaming data ingestion, batch historic backfill, and interactive queries all just work out of the box.
Pillar 3: Optimized and easy to adopt
Delta Lake is easy to adopt, optimized for the cloud, and using Delta Lake avoids data lock-in.
This pillar speaks to engineering challenges when building a cloud data platform.
Under this pillar, Delta Lake has the following features:
1. "Scalable metadata handling" leverages Spark's distributed processing power to handle all the metadata for petabyte-scale tables with billions of files at ease.
2. "Effective on-premises" means that Delta Lake works well with Hadoop Distributed File System (HDFS) on-premises.
3. "Compatibility with Spark APIs" means that Delta Lake is easy to adopt for Spark users.
4. As an "open-source format", Delta Lake eliminates data lock-in. Using Delta Lake, there is no requirement only to use Delta Lake.
5. "Local development" means that Delta Lake supports laptop-based development and testing.
6. "In-place import" allows efficient, fast-import from Parquet to Delta format.
Exploring the Delta Architecture
Beyond these core features, using Delta Lake to build a cloud data platform also allows the use of Delta architecture. Let’s explore this architecture and its advantages when building an EDSS.
Delta Architecture
With the Delta architecture, multiple tables of data are kept in the same data lake. We write batch and stream data to the same table. Data is written to a series of progressively cleaner and more refined tables.
Raw data ingested into a bronze data lake table
This image depicts the first step in Delta architecture, where a data lake ingests raw data. This data can come from stream or batch data sources and is stored in inexpensive commodity object storage, as shown by the bronze table in the image. The data in this table often has long retention (years) and can be saved "as-is," avoiding error-prone parsing at this stage.
A silver data lake table designated as the SSOT
This image depicts the second step in Delta architecture, where the silver data lake is designed as the SSOT. Data in the silver table is clean and therefore easily queryable. Because the table is easy to query, debugging is much easier.
The query layer or gold table
This is the third step in Delta architecture, where cleaned aggregated data is available in a gold table, also known as a query layer. This data is ready for consumption via Apache Spark.
A Complete Architecture That Fully Supports Batch and Stream Data Processing
Delta architecture is a complete architecture that fully supports batch and stream data processing. In this image, we can see data streams moving through a data pipeline. These streams have low latency or are manually triggered, which eliminates the need for schedules or jobs. In addition, this architecture supports methods not historically supported by an ODW or CDW such as DELETE, MERGE, UPDATE, and Upserts, useful for GDPR or CCPA compliance.
This course is for individuals who want a high-level overview of how Databricks can help organizations adopt a Unified Data Analytics approach.
By the end of the course you will be able to:
1: Summarize the benefits of adopting a Unified Data Analytics approach to business.
2: Explain, at a high-level, how Databricks enables organizations to adopt a Unified Data Analytics approach to business.
3: Explain how the individual components of the Unified Data Analytics Platform help organizations increase efficiency.
4: Give examples of how real-world customers have used Databricks to streamline big data workflows.
Lesson 1: Why Unified Data Analytics?
In the early days of data analytics, simple relational databases, historical data, and spreadsheet expertise were used to drive business decisions. Today, with the emergence of big data, these methods are no longer sufficient. Businesses today spend a significant amount of resources trying to piece together solutions for how to extract insights from big data.

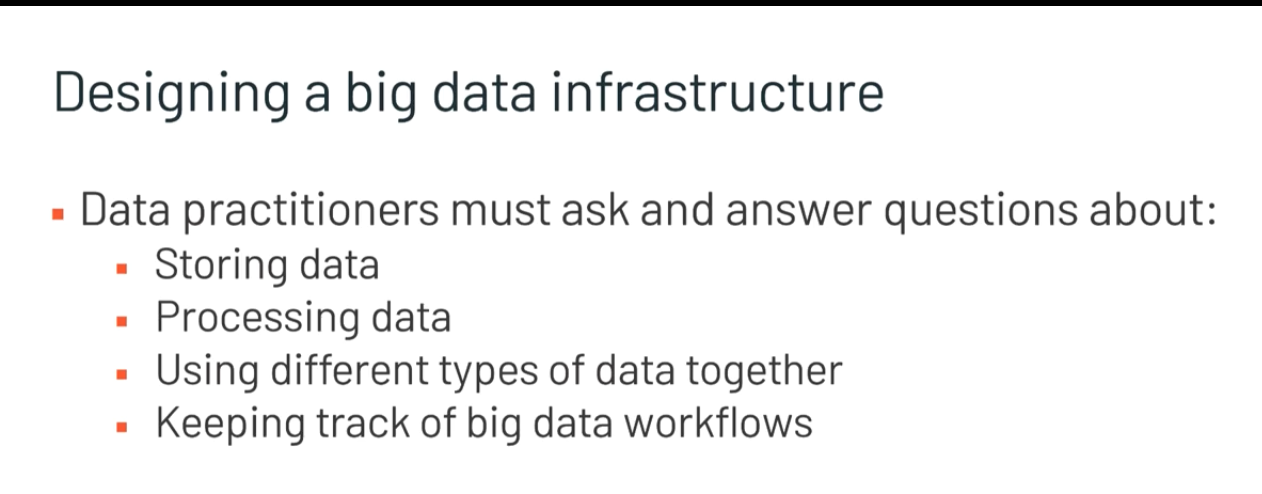

You might be asking yourself, “Why is extracting insights from big data so complicated”? In the video below, we’ll review the challenges that many organizations face as they try to work with their big data. These concepts are important, as they are what set the stage for the emergence of Unified Data Analytics.
Big Data is complex to work with because of 3Vs: Volume, Velocity and Variety
Lesson 2: What is Unified Data Analytics?
As we explored in our last lesson, working with big data is complicated. UDA arose to help data practitioners spend more time analyzing and extracting insights from data rather than figuring out how to store it, manage it, and more. In this lesson, we’ll review the basic elements behind a UDA approach to business.
The concept behind a UDA approach sounds pretty straight-forward, right? At a high-level, it is. In summary, a UDA approach simply means that an organization is able to collect and process big data, store that data over a long period of time, and have that data at their disposal whenever they need it for a variety of business purposes.
In our next lesson, we’ll apply this idea to a real-world scenario so that you can see what a UDA approach might look like in real-life.
Lesson 3: Applying a Unified Data Analytics approach
In our previous lesson, we introduced the conceptual idea behind a UDA approach to business. In this lesson, we’ll take this conceptual idea and apply it to help illustrate what a UDA approach might look like in a real-world organization.
Did you come up with any examples we didn't include in the video? If you did, nice work! A little later in the course, you'll hear from Databricks customers about how they've applied a UDA approach in their businesses - businesses you are probably familiar with. Next, we'll explore how Databricks helps organizations adopt this type of approach to work with their big data.
Before we continue to our next lesson, you'll have the chance to take a quick quiz about what you've learned so far.
Lesson 4: Test
Lesson 5: A brief introduction to Databricks
In the previous lesson, you learned all about UDA - why it is gaining popularity, what it entails, and what it might look like, at a high-level, in a real-world organization.
At this point in our course, we’ll pivot to talk about Databricks, which was created to help organizations set up their big data infrastructure using a UDA approach.
Collaborative Data Science Workspace
In this lesson, we’ll review high-level functionality behind the Collaborative Data Science Workspace (Workspace).
Workspace functionality
The Workspace is the physical location where everyone on your data science team works together, from data ingest to production. Depending on the role of the data practitioner, they’ll use different functionality within the workspace, but they will still be in the same workspace and will have the ability to collaborate with each other.
Each Workspace is connected to an organization’s data store, which can (currently) either be in AWS or Azure. This data store serves as their single source of truth, meaning that individuals working in the Workspace can all access and work with the same data.
There are three major components of the Data Science Workspace including collaborative notebooks, Managed MLFlow, and the Runtime for Machine Learning. We'll review each of these now.
Lesson 6: Unified Data Service
In this lesson, we'll review the components of the Unified Data Service including the Databricks Runtime, Delta Lake, and Databricks Ingest.
Databricks Runtime:
1. Optimized version of Spark
2. Runs on auto-scaling infrastructure
Delta Lake:
1. Adds intelligence to a data lake
2. Benefits include:
- Data reliability
- Easier data management
- Connections to visualization tools
Databricks Ingest
How does the Unified Data Service tie back into a Unified Data Analytics approach? First, as already mentioned, the Unified Data Service powers all of the data workflows being conducted by data practitioners as they work with data, from ingest to production. In addition, the Unified Data Service includes features like Delta Lake and Auto Ingest which enable data practitioners to easily store and manage data as business requirements change. The data processed and managed by Unified Data Service are what are used in periodic reporting, real-time dashboards, and artificial intelligence workflows.
In our next lesson, we’ll review the final component of the Unified Data Analytics Platform-- the Enterprise Cloud Service.
Lesson 7: Enterprise Cloud Service
Characterstics of the Enterprise Cloud Service:
Security Features:
- Retain control over your data
- Private, isolated, compliant workspaces
- Use corporate directories (such as Okta) to help establish data access
- Single sign-on
- Meet compliance standards (like GDPR (General Data Protection Regulation) and HIPAA (HIPAA is a US regulation that stands for Health Insurance Portability and Accountability Act.))
Simple Administration:
- Automatically onboard and offboard users
- Audit and analyze user activity
- Enforce policy configurations
- Set alerts
Production-ready Infrastructure:
- Ready-to-use environments
- APIs to automate version control
- On-demand auto-scaling infrastructure
How does the Enterprise Cloud Service tie back into a Unified Data Analytics approach?
It protects all of the work being done with your data - from ingestion to storage to performing analytics and generating real-time dashboards and periodic reports.
